The HardieDeck™ Concealed Fixing system is designed to provide better performance and flexibility; however, to ensure that you get the full benefits, it is important that you are using the correct accessories.

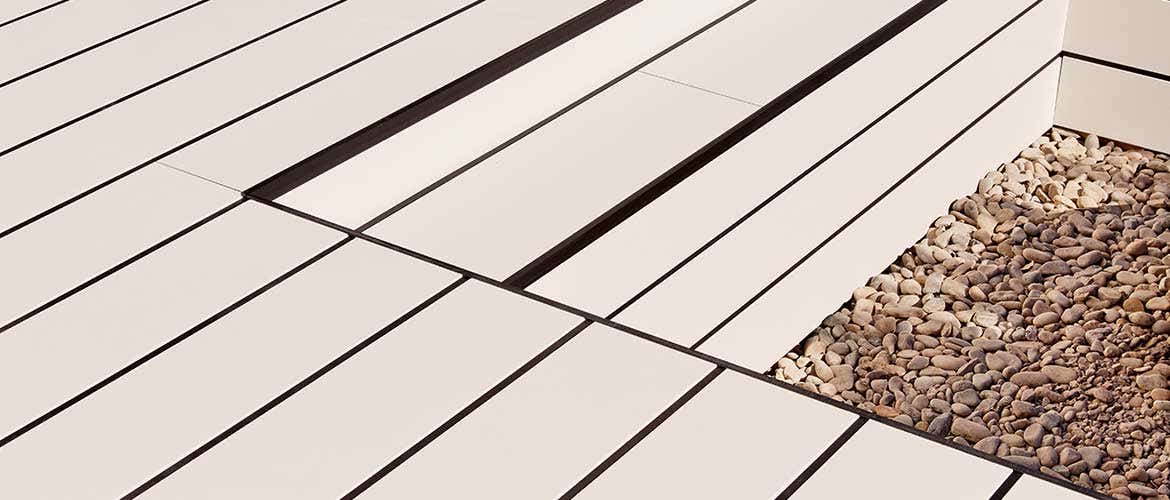

The concealed fixing system provides an even better performing deck with improved drainage and ventilation, whilst maintaining the same good looks.
Note - the HardieDeck on display at all NHS stores has the FZ concealed fixing system installed
What are the new HardieDeck™ Components?
| Accessory | When is it used? | Coverage* |
| Core Components | ||
Snap-in Top Strip |
Used to conceal fixings and gaps between boards whilst allowing drainage and ventilation. This is used in all applications and Bushfire areas up to BAL 40. |
You need about 1 jointer/board. For a standard deck of 30m2, you will need about 50 units (10 packs) |
|
Double Wing Base Jointer & Screw
|
Used to fix HardieDeck™ boards to the frame. They are 225mm long and required at every fixing point. |
You need about 10 jointers/m2 of deck. E.g. for a standard 35m2 deck, you will need 350 jointers (10 packs). |
| Optional and Design Based Components | ||
|
Top Strip FZ |
As an alternative for the Snap-In Top Strip for Bushfire Flame Zone applications that provides a fully sealed gap for unenclosed decks. |
As per Snap-In Top Strip |
Single Wing Jointer & Screw |
Used for junctions with walls and changes in HardieDeck™ board orientation. It is optional. |
Lineal metres of junction with home/0.45 e.g. a standard 30m deck may need 20 jointers (less than 1 pack) |
Wingless Jointer & Screw |
For changes in direction of deck boards and aesthetic looks. |
Dependent on design |
*Coverage based on 500mm joist spacing.
What is the suitability of each of the top strips i.e. when do I use the standard top strip vs. the FZ top strip?
Each top strip has been designed to provide maximum performance in 4 major applications and therefore must be used accordingly. They are not aesthetic options. The table below provides an overview of their suitability.
| Key Design Limitations^ |
HardieDeck™ Base Jointers |
HardieDeck™ Snap-in Top Strip | HardieDeck™ Snap-in Top Strip FZ* | |
| Low Set and/or Enclosed Decks |
Partially Enclosed or Unenclosed. - No Fall required. - Steel or Timber joists. |
Y | Y | N |
| Pool and Coastal Areas | Y | Y | N | |
| Bushfire Areas (up to and incl. BAL 40) |
Y | Y | N | |
| Flame Zone Bushfire Areas |
-Unenclosed -Fall 1:100 -Steel Joists |
Y | N | Y |
*FZ Top strip is designed to have a tight seal and it is designed to be used in BAL-FZ rated areas to comply with the requirements of AS3959 – Construction in Bushfire Prone Areas. HardieDeck™ Snap-in Top Strip FZ should be used in BAL-FZ zones only with the deck requirements listed in this table and in the current HardieDeck™ Installation Guide.
^This is not an exhaustive list, please refer to the current HardieDeck™ Installation Guide for more information.
Are the screws included in the packs suitable for steel frames?
No. HardieDrive™ Screws are recommended for steel frames (Please refer to the HardieDeck™ Installation Guide for more information).
How are the accessories packaged and how many do I need?
All accessories are delivered in boxes, these are supplied as follows:
| Accessory | How many packs are in each box? | How many units are in each pack? | How many units do I have in total? | What is the coverage? |
| HardieDeck™ Snap in Top Strip |
10 packs | 5 Snap-In Top Strips | 50 Snap-In Top Strips | 30m2 (box) 3m2 (pack) |
| HardieDeck™ Double Winged Base Jointer |
10 packs | 35 Double Winged Base Joiners + 37 screws |
350 Double Winged Base Joiners + 370 screws |
35m2 (box) 3.5m2 (pack) |
| HardieDeck™ Snap in Top Strip FZ |
10 packs | 5 Snap-in Top Strip FZ |
50 Snap-in Top Strip FZ |
30m2 (box) 3m2 (pack) |
| HardieDeck™ Single Wing Base Jointer |
10 packs | 35 Single Wing Base Jointers + 37 screws |
350 Single Wing Base Joiners + 370 screws |
- |
| HardieDeck™ Wingless Base Jointer | 10 packs | 5 Wingless Base Jointers + 35 screws (7 screws per each Wingless Base Jointer) |
50 Wingless Base Jointer + 350 screws |
- |
† Coverage based on 500mm joist spacing.
If you have any more questions around HardieDeck or the concealed fixing system, please reach out to us here
