Introducing GLT Beam 15 from Hyne Timber

Introducing GLT Beam 15 from Hyne Timber

Introducing GLT Beam 15 from Hyne Timber

Our friends at Hyne Timber are proud to offer their new GLT Beam 15. As they transition away from GLT17, the new Beam is designed and manufactured to be strong and reliable.

Rigorously tested, the Beam 15 can replace LVLs, steel, and GLT17 for large openings like windows, door openings, garage door openings, and even roof beams. When used for exterior, above ground applications, it is recommended to use the H3 treated GLT15. Manufactured in Australia, this product will be available for your structural needs.

Hyne’s glue laminating process enhances the strength of timber, this helps ensure that the product is comparatively lightweight and enhances the structural integrity of timber.

Thinking of adding a feature to your modern design?

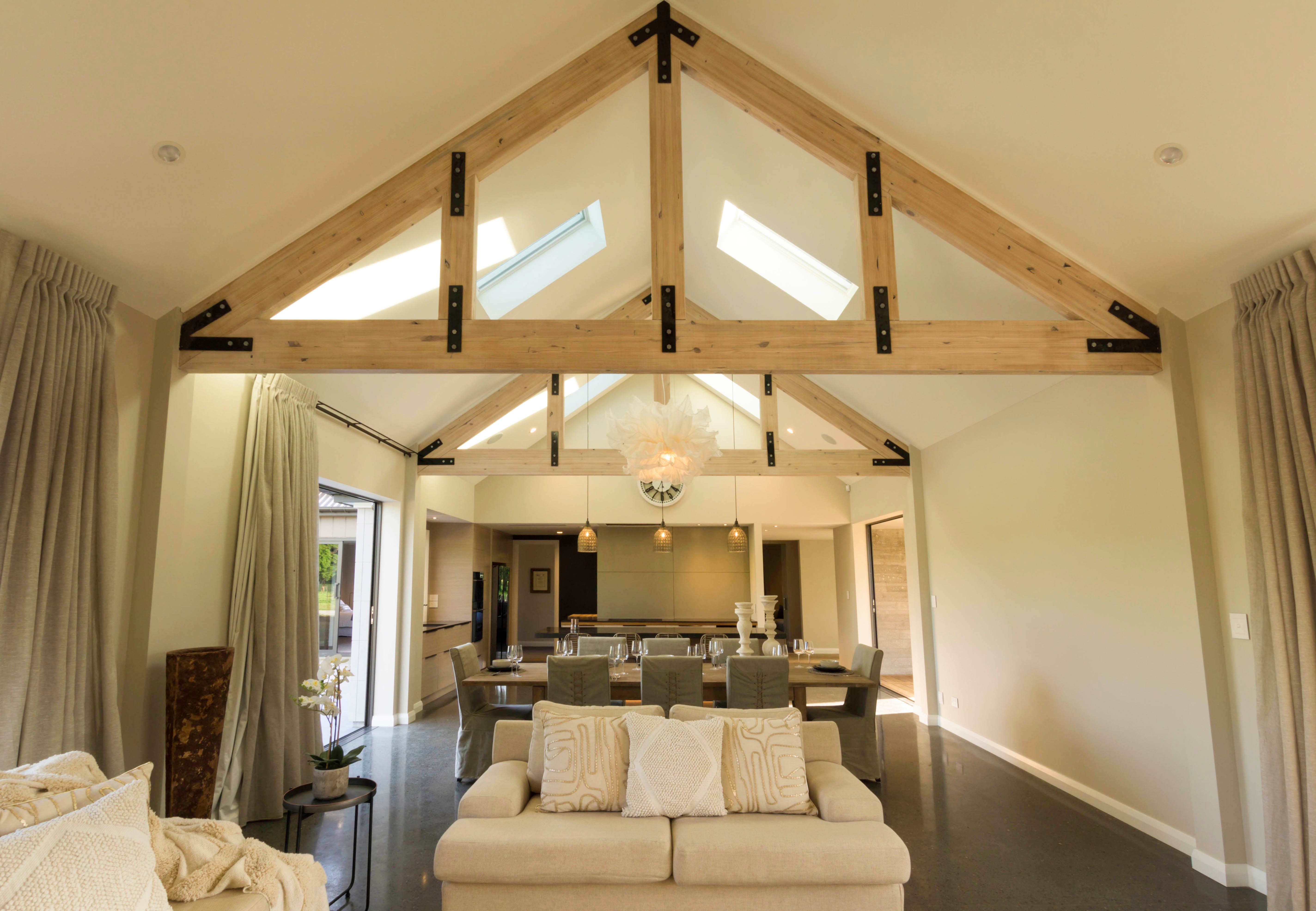

Modern design articles talk about creating features that wow, and the right use of exposed beams is feature to achieve complete the look. The Beam 15 can be used as exposed rafters, adding a natural element to the space while also delivering a durable structure for the roof.

Appearance grades of Beam 15

The Beam 15 is available both Appearance Grade A (made to order) and Grade B.

Appearance Grade A

Appearance Grade A is for use in applications where appearance is important and clear or painted finishes are used. All surface voids are therefore filled or repaired. Unless otherwise specified, the surface are sanded to a minimum 60 grit finish.

Appearance Grade B

Grade B is intended for use in paint applications where appearance is not important. The surface is clean and planed but may exhibit minor blemishes.

Other features of GLT Beam 15

Properties

Sustainably sourced pine, fungal resistant product, termite resistant product, product of Australia

Lengths

2.4m-12.65m (in 0.3m increments)

Profiles

Straight (made to order)

Cambered to 600m radius

Curved- doen to 1.5m radius (made to order)

Section Size

65mm Thickness – Widths 130mm to 495mm

85mm Thickness – Widths 130mm to 525mm

130mm Thickness – Widths 130mm to 525mm

Standards

Manufacturing standards:

AS/NZS 1328.1 – 1998 Glued laminated structural timber Part 1: Performance requirements and minimum production requirements.

AS 5068 – 2006 Timber - Finger joints in structural products - Production requirements

Design Standards:
AS1720.1-2010 – Timber structures Part 1: Design methods.

Download the Product Technical Data Sheet here

View the Deisgn Information here
